Established in 2016, Guangdong Guichang Metal Racks Trading Co., Ltd. is a premier, engineering-driven manufacturer specializing in the design, structural analysis, fabrication, and export of premium industrial storage racks and heavy-duty shelving.
Operating out of our advanced 18,500㎡ production facility, our company leverages state-of-the-art automation and highly skilled engineering staff. With a network of over 850 strategic raw material suppliers and global partners, we guarantee structural integrity, material supply chain resilience, and competitive delivery metrics.
Our operation integrates strict quality management systems (adhering strictly to ISO 9001 quality management guidelines) that cover every checkpoint: raw material chemistry inspections, automated welding reliability, precision electrostatic powder-coating thickness metrics, structural load-bearing tests, and seismic safety rating evaluations.
Explore our highly versatile structural steel configurations, featuring boltless connections, customizable framing, and load capacities designed for industrial, retail, and commercial environments.
Understanding what warehouse operators, 3PL providers, and procurement managers prioritize when choosing racking suppliers.
Procurement teams seek compliance with EN 15512, RMI, and FEM standards. Structural collapse due to overloading, low-grade raw materials, or faulty design can lead to massive liabilities.
Maximizing volumetric efficiency is crucial. Warehouse designers need highly adjustable vertical pitch spacing (e.g., 50mm or 75mm adjustments) to match shifting SKU sizes.
Especially for cold-storage environments and high-humidity regional depots, rust ruins racking systems. Racking buyers demand rigorous powder-coated treatments and galvanized finishes.
Understanding the raw material integrity and surface modification process that ensures long-term system load reliability.
At Guichang Metal Racks, we rely on high-grade Q235B and Q355B structural carbon steel, ensuring excellent tensile strength and load resistance. The structural uprights are cold-rolled using state-of-the-art rolling machines that maintain uniform profile thickness and high dimensional consistency. High yield strength enables our heavy-duty racking systems to withstand vertical loads exceeding 4,000 kg per bay, and light-to-medium systems to support 100kg-200kg per layer.
To prevent rust and extend structural life, our racks undergo an automated 11-stage pretreatment process, including mechanical cleaning, hot chemical degreasing, acid rust-removal, and zinc-phosphating. Following this, an electrostatic thermosetting epoxy powder coat is applied to a dry film thickness of 60 to 90 microns, then baked at 180°C. This ensures high impact resistance, corrosion protection, and a smooth aesthetic finish.
| Racking Category | Primary Material Grade | Average Loading Capacity | Surface Treatment Specifications | Target Applications |
|---|---|---|---|---|

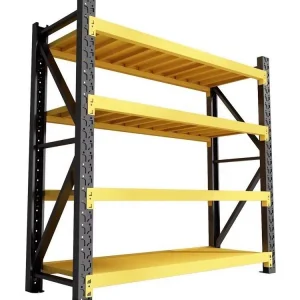

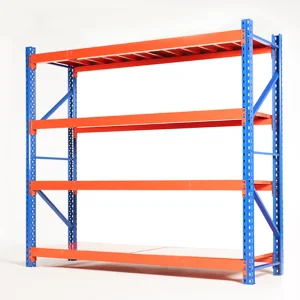

| Heavy Duty Pallet Racks | Q355B Structural Steel | 1000 - 4000 kg / layer | Pretreatment + Epoxy Powder Coat (70-90 μm) | 3PL Warehousing, Industrial Hubs |
| Medium Duty Shelving | Q235B Mild Steel | 200 - 800 kg / layer | High Durability Powder Coating (60-80 μm) | Automotive Parts, Hardware Storage |
| Light Duty Boltless Shelving | SPCC Cold-Rolled Steel | 50 - 150 kg / layer | Fine Textured Powder Coat (50-70 μm) | Garages, E-Commerce Pick, Retail Displays |

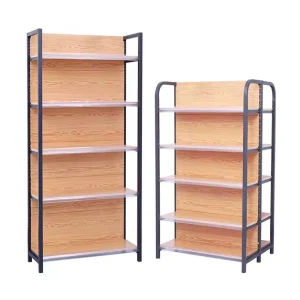

| Supermarket & Gondola Units | SPCC Steel + Cold Drawing | 50 - 100 kg / layer | Premium Powder Coating / Zinc Plating | Supermarkets, Convenience Stores, Retail Pharmacies |
From raw coils to finished parts, examine the step-by-step manufacturing and quality control workflow at our facility.
Automatic Cutting System
Industrial Welding Station
Fiber Laser Cutters
Heavy Structural Roll Former
High-Speed Eyelet Machine
Eco-Paint Cure Line
Welding Robotics
Shearing & Profiling Center
Thermal Transfer Printing Machine
Automated Assembly Welders
Heavy Mesh Panel Welder
Surface Sandblasting System
Electrochemical Powder Spray Line
CAD Design & Optimization
How modern warehouse environments are changing, and how we are preparing our storage technologies for the next decade.
Modern layouts are increasingly adopting Automated Storage and Retrieval Systems (AS/RS). Our high-precision racking frames are engineered with tight tolerances to support automated shuttles and robotic cranes safely.
We are researching structural sensors that integrate directly into racking columns. These sensors measure strain, vibration, and overload alerts in real-time, preventing warehouse failure before it happens.
By switching to low-emission powder cure lines and scrap metal recycling partnerships, we help our enterprise buyers reduce their Scope 3 supply chain emissions.
How we facilitate seamless installations and customs approval processes across five continents.
We design and construct racking solutions tailored to the building regulations of target regions. This includes wind-load profiles for outdoor yards, seismic calculations for earthquake zones (US West Coast, Japan, Chile), and loading plates displaying certification metrics.
Exporting to Europe, North America, the Middle East, and Southeast Asia requires specialized document handling. We provide complete structural blueprints, load certificates, customs clearance paperwork, and detailed assembly instructions to help simplify local inspections.
Answers to common structural and logistical questions from global buyers and logistics engineering teams.
We use high-grade cold-rolled steel coils, primarily grades Q235B and Q355B. These structural steel grades offer high yield strength and reliability. We also verify structural performance through Finite Element Analysis (FEA) testing.
Yes. Our R&D team of 18 engineers can customize profiles, baseplates, and bracing systems to meet local seismic codes. We calculate correct dynamic response factors to ensure structural stability in high-risk zones.
We offer two main protective coatings: custom hot-dip galvanizing, which provides deep metallurgical protection, and a multi-stage epoxy powder coating. Both treatments are designed to handle temperature transitions and moisture condensation without peeling or rusting.
Lead times range from 20 to 35 days, depending on customization details and volume. With 18,500㎡ of production space and automated welding and powder-coating systems, we maintain efficient fabrication and shipping schedules.
Heavy-duty structural storage configurations and specialized displays designed for high-capacity warehouse environments and commercial stores.
